DIN Rail Switch Disconnector

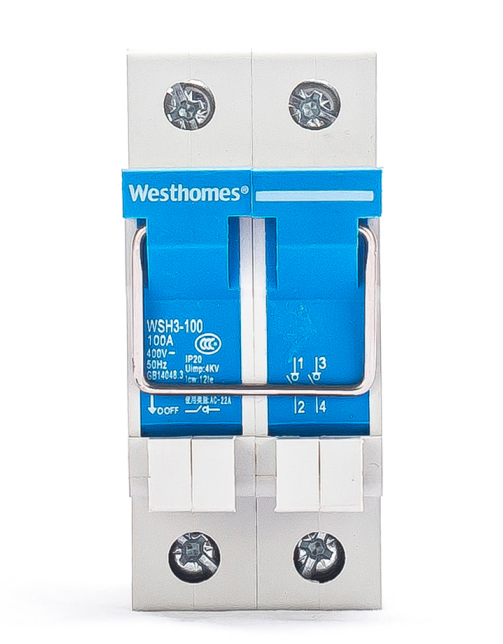

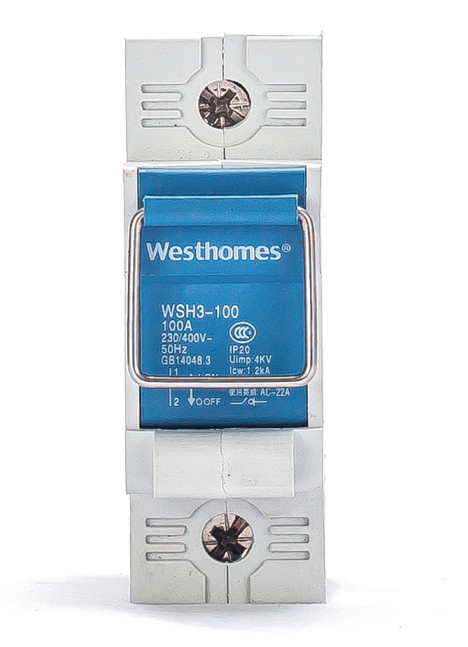

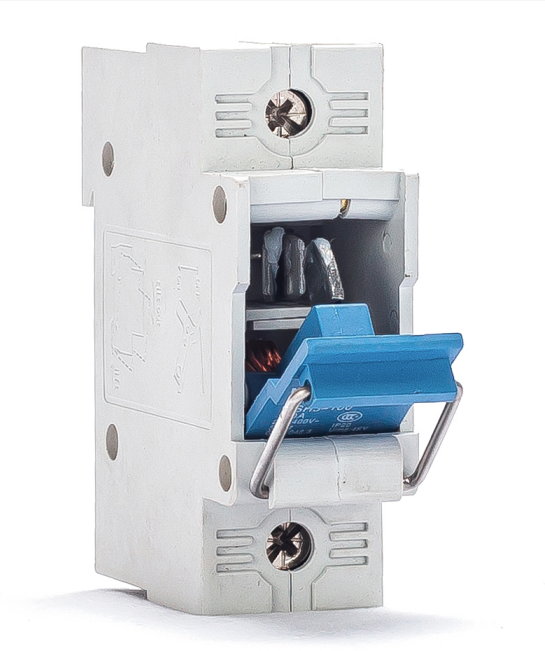

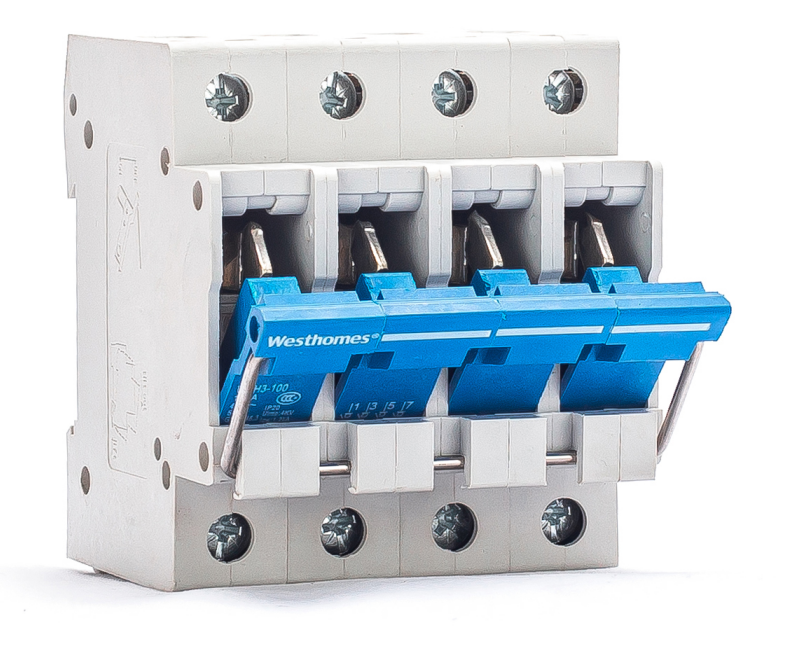

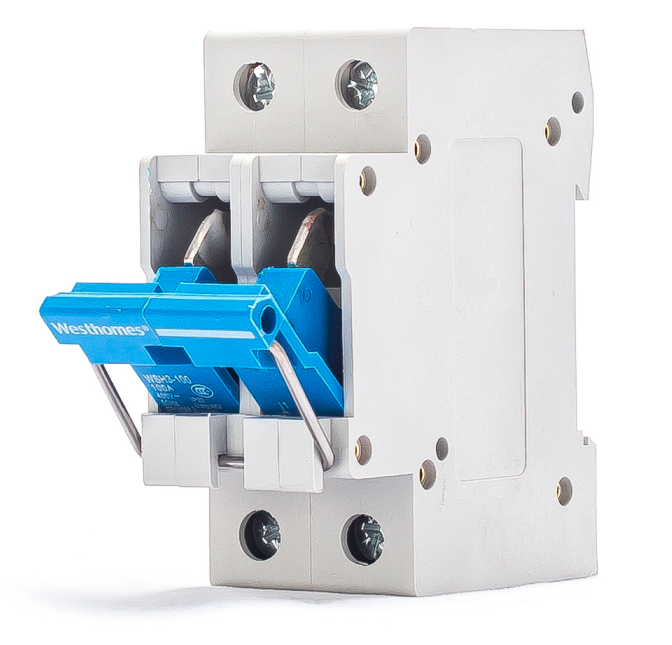

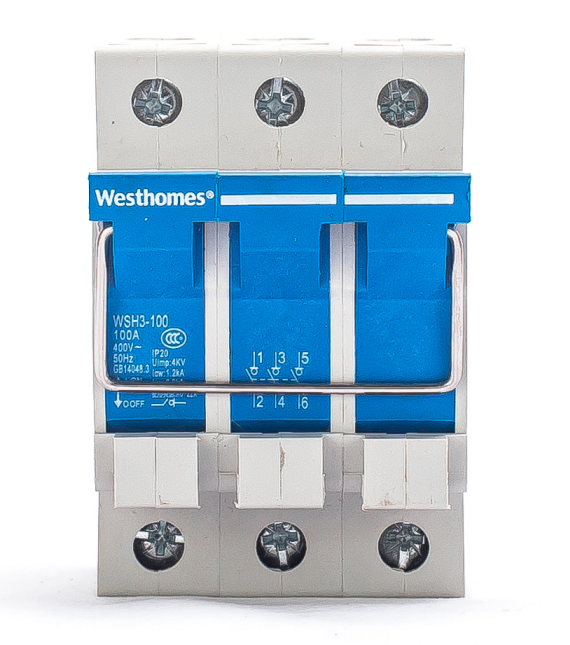

Mini Switch Disconnector WSH3-100
Key Information
WSH3-100
Pole: 1P, 2P, 3P, 4P
Voltage: AC230V/400V
kA: Icm:2.0KA
Amps:32, 40, 50, 63A, 80A, 100A

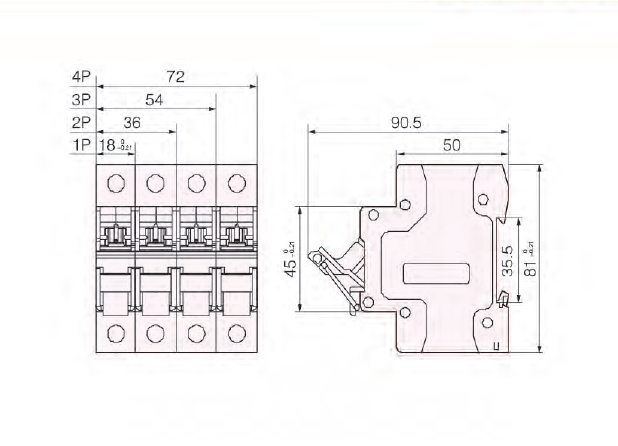

Width: 18, 36, 54, 72mm
General
WSH3-100 series mini switch disconnector applies in distribution lines of AC50Hz, rated current 32A to 100A, rated voltage AC230V/400V for usage of switch disconnector and emergency swith of the power, especially suits to effectively disconnect the power and prevent switch on by accident when line maintenance, to guarantee operation safety of maintenaner.
Main technical parameters
| Model | WSH3-100 |
| Rated current | 32A, 40A, 50A, 63A, 80A, 100A |
| Pole (P) | 1P, 2P, 3P, 4P |
| Rated voltage Ue | AC230V/400V |
| Rated short time withstand current Icw | 1.2kA |
| Rated short time connecting capacity Icm | 2kA |
| Hydrothermal resistance | Category 2 |
| Utilization category | AC-22A |
| Pollution degree | Level 2 |
| Cabling degree | 1-25mm2 |
| Electrical life | 8500 times |
| Mechanical life | 12000 times |
| Quality certificate | CCC certificated |
| Standard | IEC 60947-3, GB 14048.3 |
