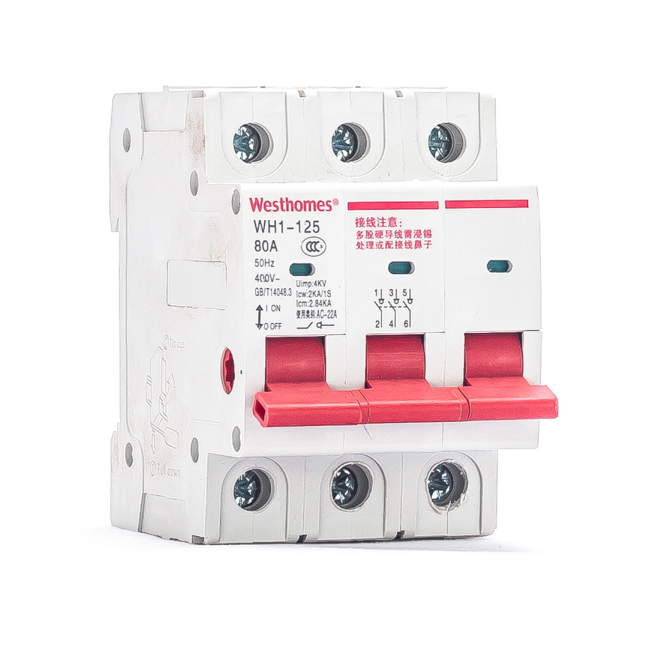

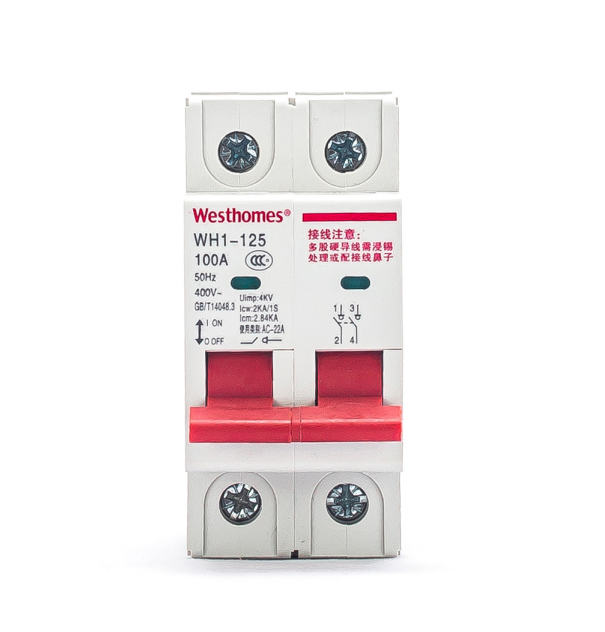

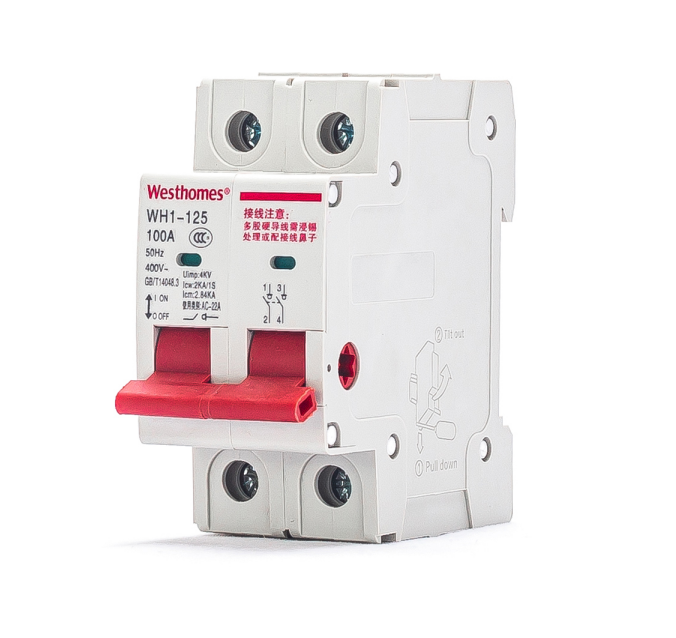

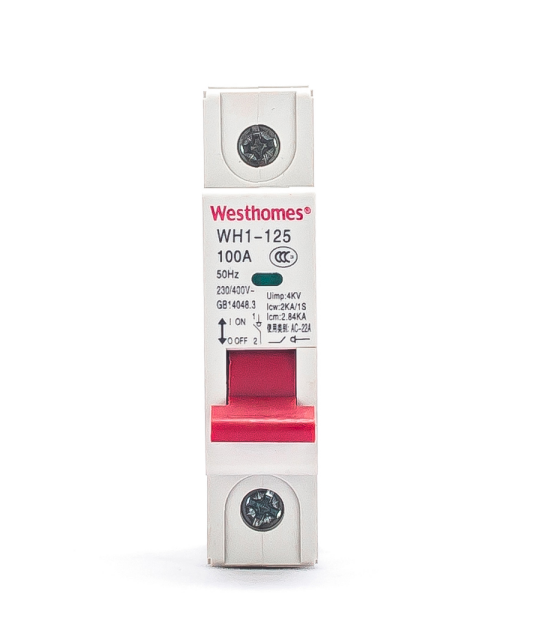

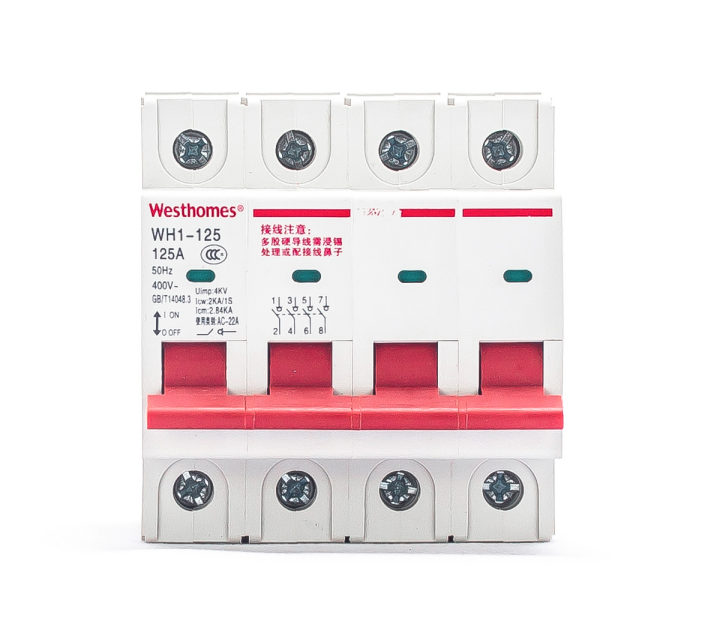

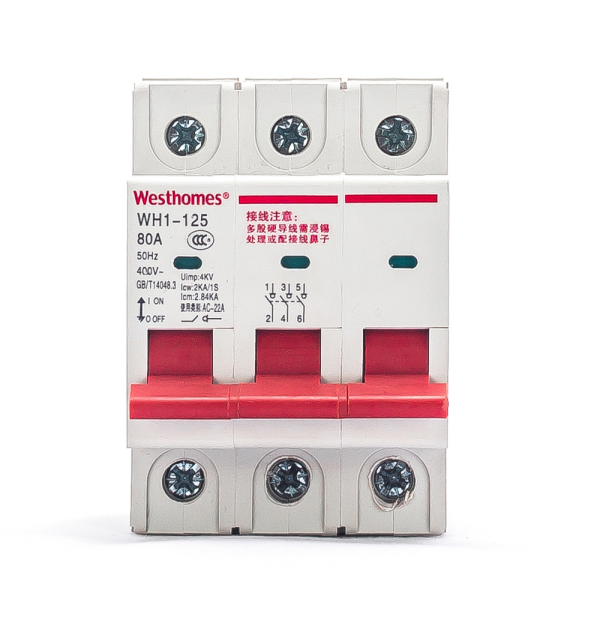

Switch Disconnector WH1-125

Key Information

WH1-125

Pole: 1P, 2P, 3P, 4P

Voltage: AC230V/400V

kA: Icm:2.84KA

Amps: 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A

General

WH1-125 series switch disconnector applies to lines of AC50/60Hz, rated voltage AC230V/400V, rated current 20A to 125A, mainly for disconnecting the power of thel ine, also for infrequency  switch for no-loading of line.

The switch disconnector is made up to three parts of insulated shell, operational mechanism and contact system, of which the insulated shell is made by injection moulding of high strength and flame retardant nylon, the contact is bridge double breakpoints, the operational mechanism is spring energy saving fast move structure.

The switch disconnector is fine and small in appearance with unique on-off indicator window. It is fast in breaking and reliable & flexible in action, easy to install and dismantle by using standard mounting rail. It makes any combination of single-pole, double-pole, three-pole and four-pole. It can be matched with mini circuit breaker, mini earth leakage circuit breaker, to apply at places of industrial, commercial, high-rise and civil building etc.

Main technical parameters
