Distribution Box / Enclosure
NTSM-Water Proof Distribution Box IP40 Plastic
Key information
NTSM Distribution Box IP40
Rated voltage / rated frequency: 690V/50Hz
Material: Cover - PC
Body - ABS
Color: White
Tested and approved to IEC/EN 60947-1
CE certificated
Din rail connection according to IEC/EN 50022
Supplied with removable earth / neutral bar
Dimension
| Type | Length (mm) | Width (mm) | Height (mm) |

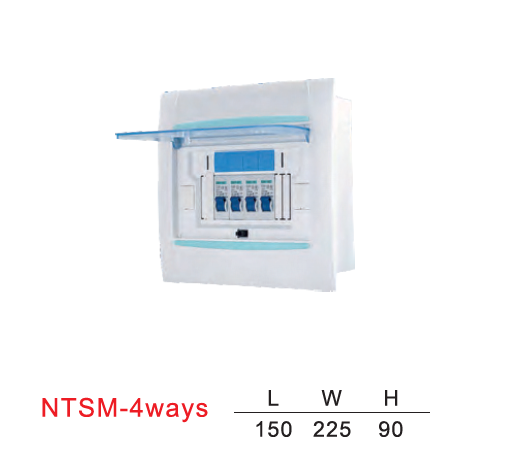

| NTSM-4ways | 150 | 225 | 90 |

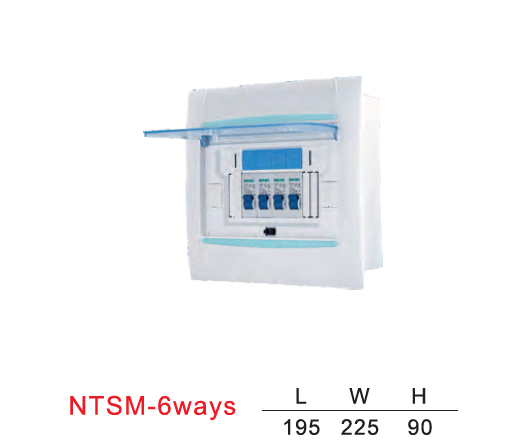

| NTSM-6ways | 195 | 225 | 90 |

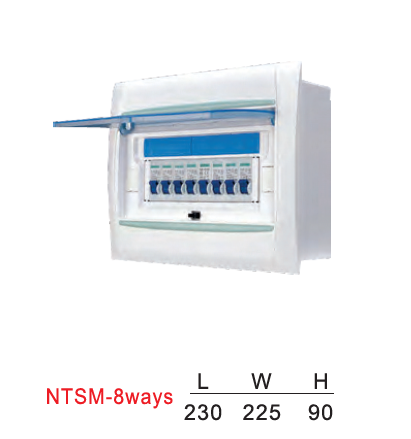

| NTSM-8ways | 230 | 225 | 90 |
| NTSM-12ways | 300 | 225 | 90 |

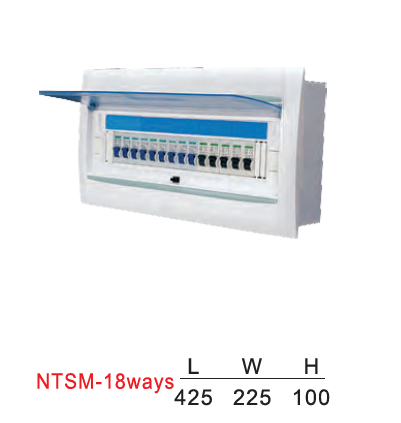

| NTSM-18ways | 425 | 225 | 100 |

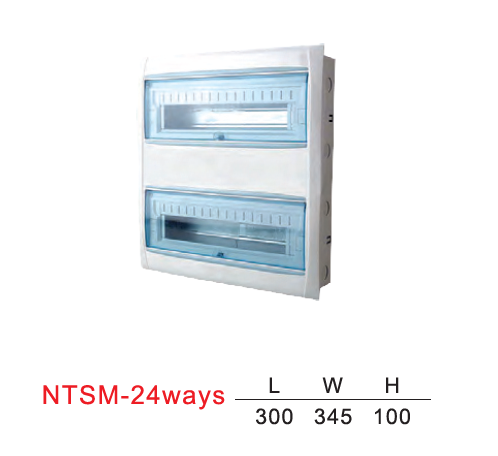

| NTSM-24ways | 300 | 345 | 100 |
