Distribution Box / Enclosure

  • HC-Water Proof Distribution Box IP65 Plastic
  • HC-Water Proof Distribution Box IP65 Plastic
  • HC-Water Proof Distribution Box IP65 Plastic
  • HC-Water Proof Distribution Box IP65 Plastic
  • HC-Water Proof Distribution Box IP65 Plastic
HC-Water Proof Distribution Box IP65 Plastic HC-Water Proof Distribution Box IP65 Plastic HC-Water Proof Distribution Box IP65 Plastic HC-Water Proof Distribution Box IP65 Plastic HC-Water Proof Distribution Box IP65 Plastic

HC-Water Proof Distribution Box IP65 Plastic

Key information
HC type Water Proof Distribution Box
Rated voltage / rated frequency: 690V/50Hz
Material: Cover - PC
               Body - ABS
Color: RAL 7035
Tested and approved to IEC/EN 60947-1
CE certificated
Din rail connection according to IEC/EN 50022

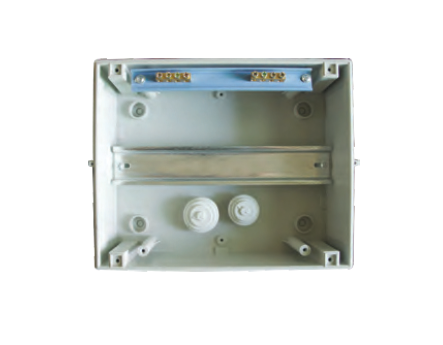

Supplied with removable earth / neutral bar

Dimension

Type

Length (mm)

Width (mm)

Height (mm)

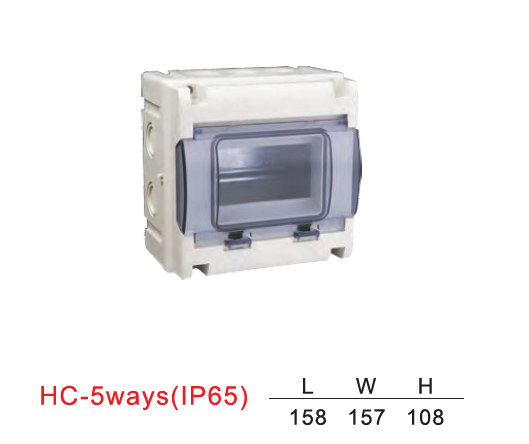

HC-5ways

158

157

108

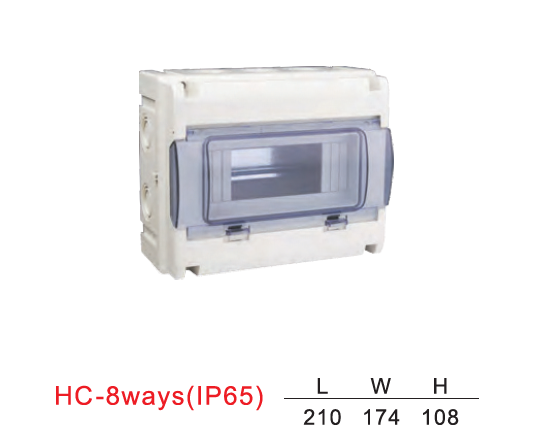

HC-8ways

210

174

108

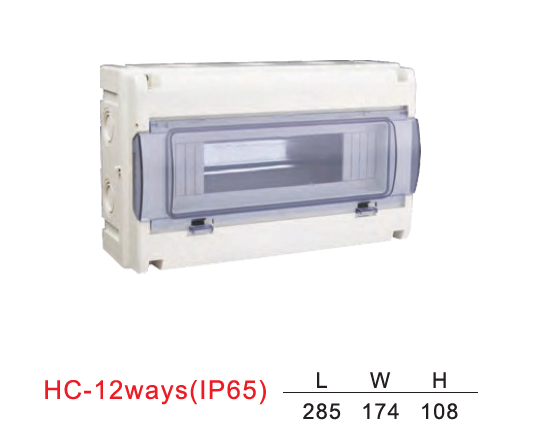

HC-12ways

285

174

108

HC-18ways

285

350

108
