HT- Water Proof Distribution Box IP65 Plastic

Key information
HT type Water Proof Distribution Box IP65
Rated voltage / frequent: 690V/50Hz
Material: Cover - PC
               Body - ABS
Color: RAL 7035
Tested and approved to IEC/EN 60947-1
CE certificated

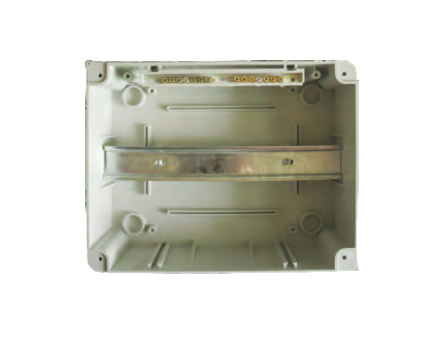

Din rail connection according to IEC/EN 50022
Supplied with removable earth / neutral bar

Dimension

Type

Length (mm)

Width (mm)

Height (mm)

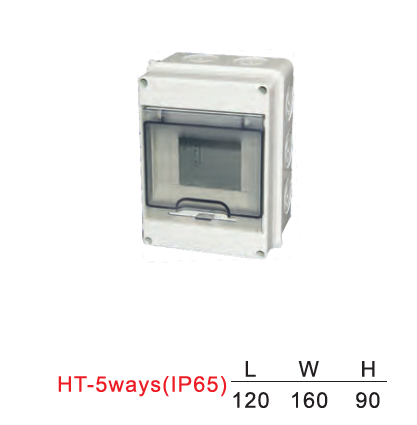

HT-5ways

120

160

90

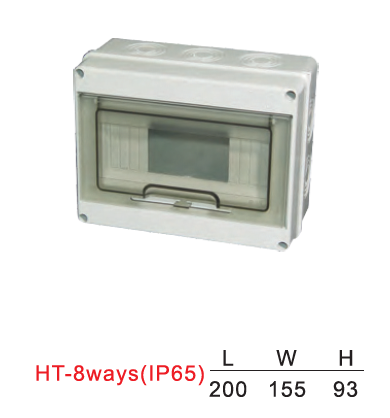

HT-8ways

200

155

93

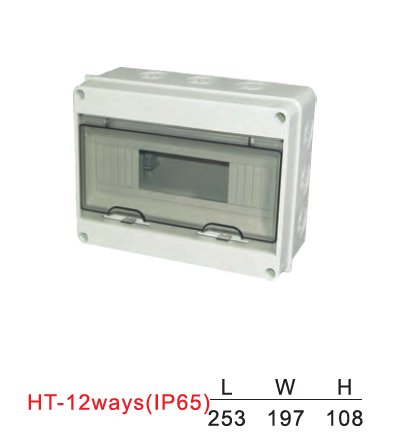

HT-12ways

253

197

108

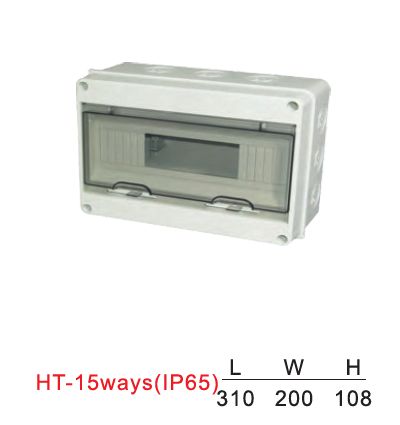

HT-15ways

310

200

108

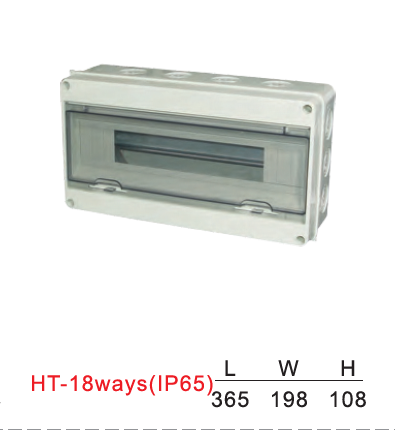

HT-18ways

365

198

108

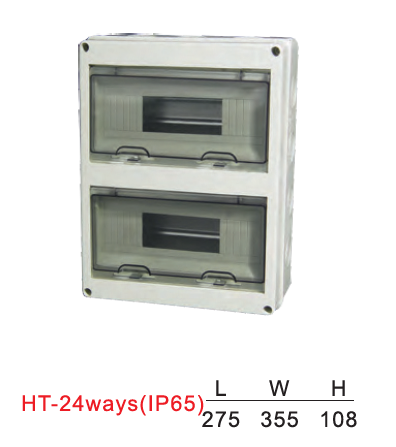

HT-24ways

275

355

108
