HA-Water Proof Distribution Box IP65 Plastic

Key information
HA type Water Proof Distribution Box
Rated voltage / rated frequency: 690V/50Hz
Material: Cover - PC
               Body - ABS
Color: RAL 7035
Tested and approved to IEC/EN 60947-1
CE certificated

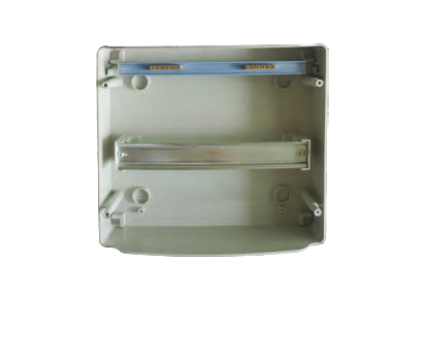

Din rail connection according to IEC/EN 50022
Supplied with removable earth / neutral bar

Dimension

Type

Length (mm)

Width (mm)

Height (mm)

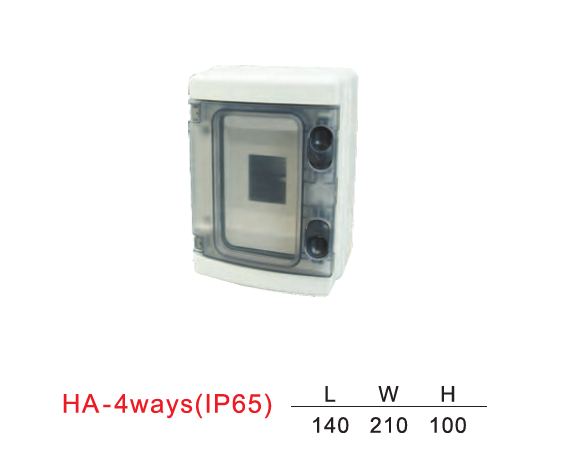

HA-4ways

140

210

100

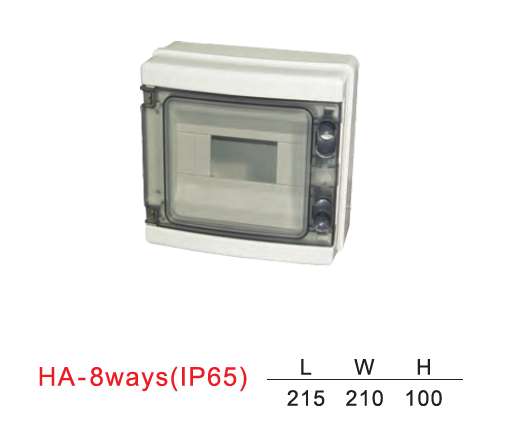

HA-8ways

215

210

100

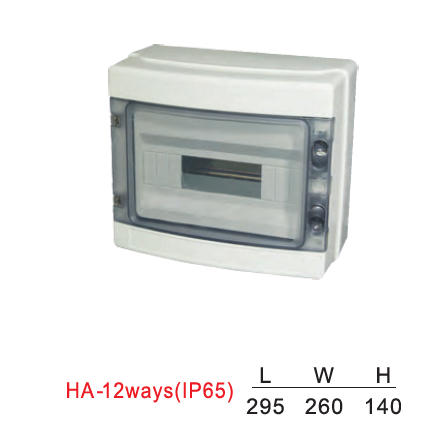

HA-12ways

295

260

140

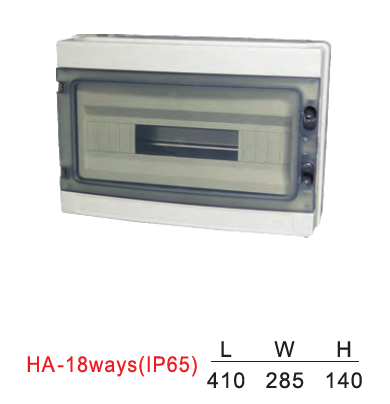

HA-18ways

410

285

140

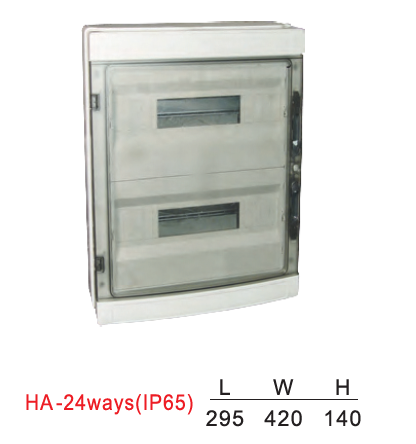

HA-24ways

295

420

140
