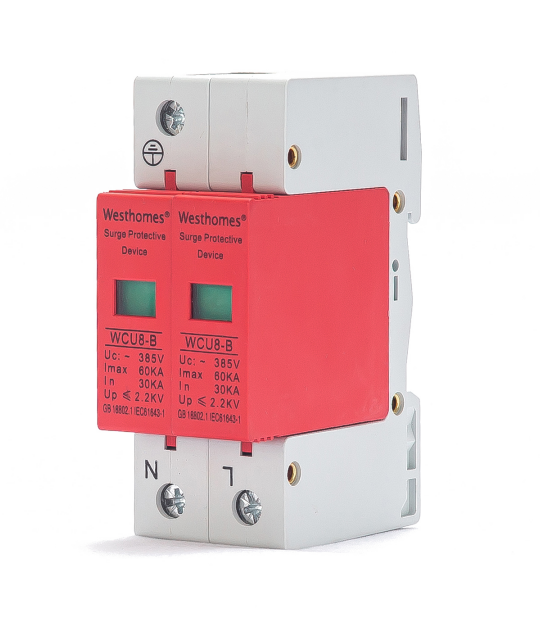

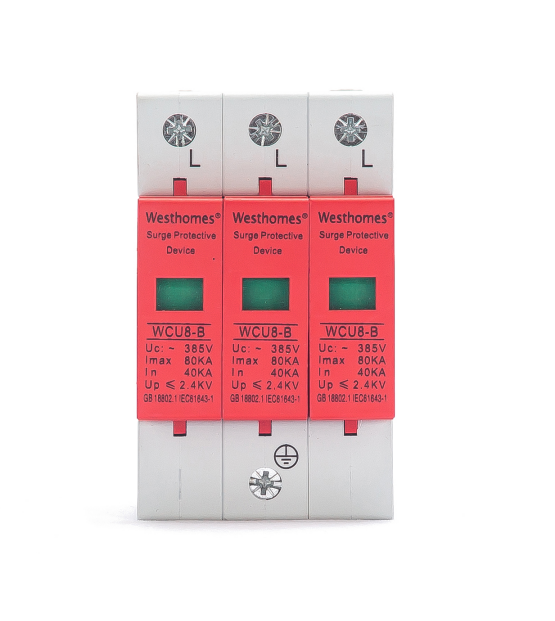

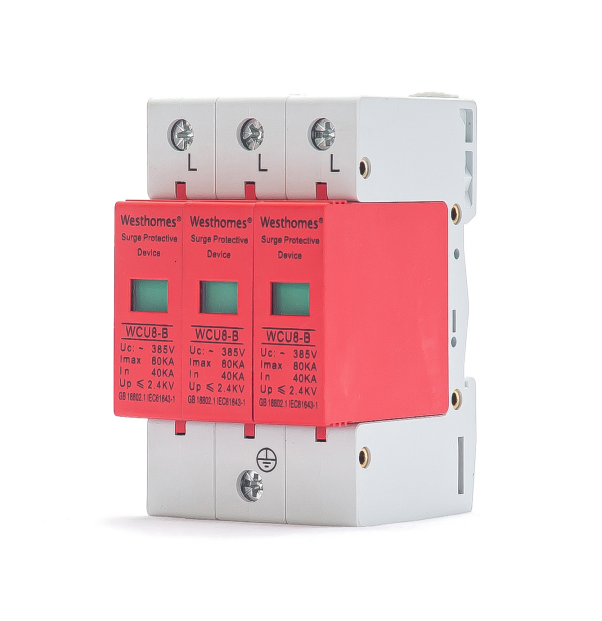

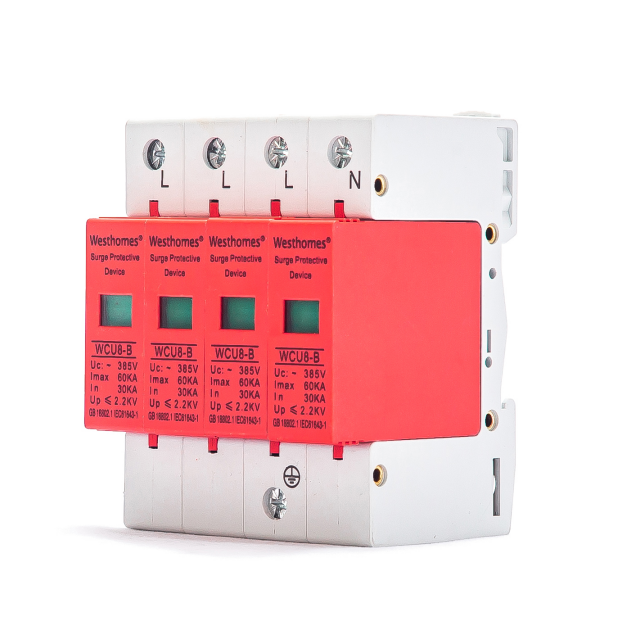

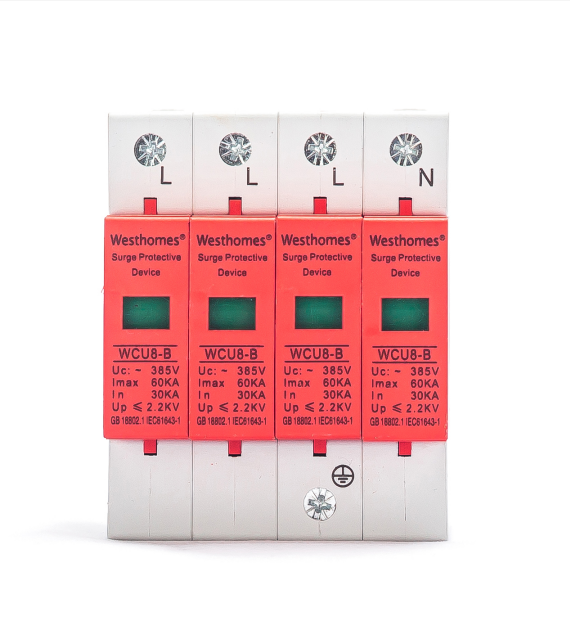

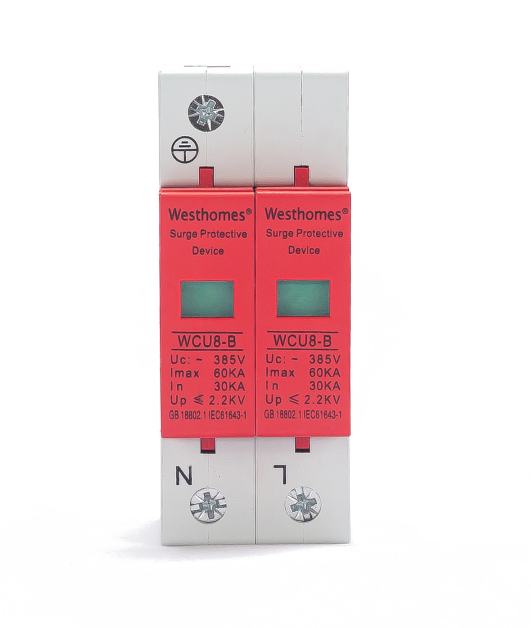

Surge Protection Device WCU8-B

Key Information
WCU8-B/C/D
Pole: 1P, 2P, 3P, 4P
Voltage: AC 110/230V/400V
kA: 10, 20, 30, 40, 60, 80, 100
Width: 18, 36, 54, 72mm
kV: Up≤1.5V--2.5KV
General
WCU8 series surge arrester mainly applies at power line of AC 50Hz/60Hz, rated operational voltage 230V and 400V to limit instantaneous over-voltage (lightning induction and switching over-voltage). It makes the protected electrical device and parts lower one level at occasion of higher over-voltage category, and lower down the voltage further when appled at terminal to protect devices like TV set, high fidelity sound, air conditioner and computer. It can also matched with other modular and digital electrics to form combination one of lightning proof inductive.
Main technical parameters

ModelWCU8-D10WCU8-D20WCU8-C30WCU8-C40WCU8-C60WCU8-B80WCU8-B100
Rated operation voltage Uo230V/400V230V/400V110V/230V/400V230V/400V230V/400V230V/400V230V/400V
Max continuous operation voltage Ue275V/385V320V/385V320V, 400V, 420V, 440V140V, 320V, 400V, 420V, 440V320V, 385V, 420V320V, 385V, 420V320V, 385V, 420V, 440V
Holding level Up0.7/1.0kV1.2/1.5kV1.4/1.8kV1.4/2.0kV1.5/2.0kV2.0/2.4kV2.2/2.8kV
Max discharge current Imax10kA20kA30kA40kA60kA80kA100kA
Nominal discharge current5kA10kA15kA20kA30kA40kA60kA
Response time S<25
Operation environment-40ºC~+85ºC
Selection area of enter wire6mm26mm210mm210mm2, 16mm210mm2, 16mm210mm2, 16mm216mm2, 25mm2
Section area of enter ground lead mm210mm210mm216mm210mm2, 25mm216mm2, 25mm2 25mm2 25mm2,  35mm2
Type selection of fuse, circuit breaker10A, 16A16A, 25A25A, 32A32A32A, 63A63A63A
