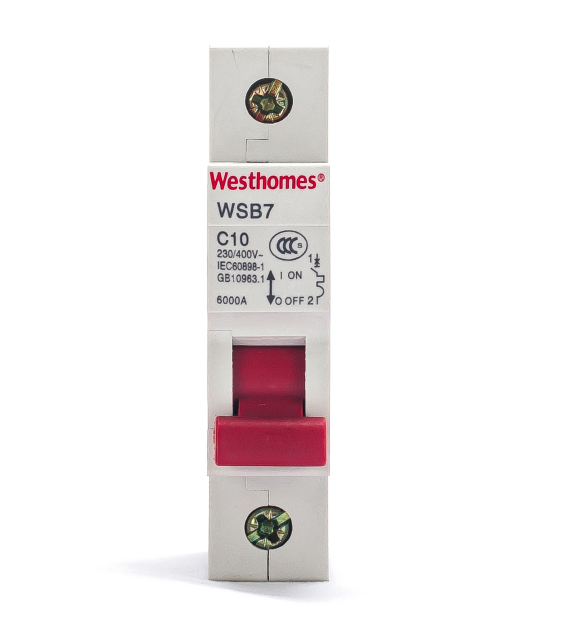

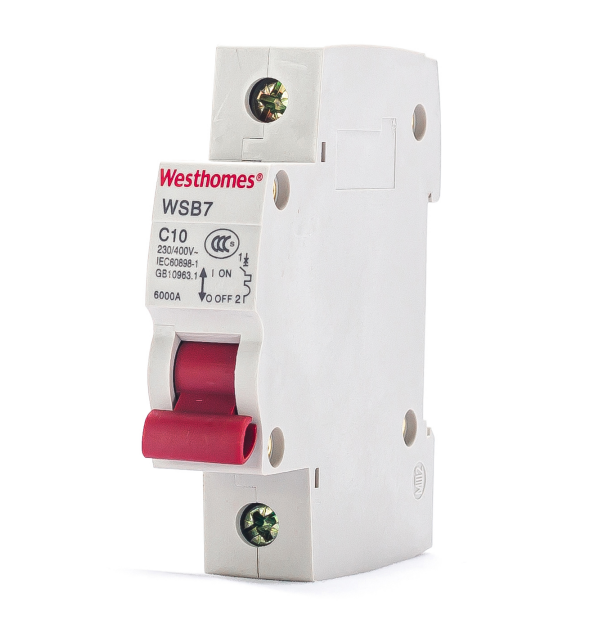

DIN Rail Mini Circuit Breaker
MCB WSB7-63
- Product ID： Miniature Circuit Breaker WSB7-63
- size： 6kA, 4.5kA, 18mm, 63A
- INQUIRY
Key Information
WSB7-63

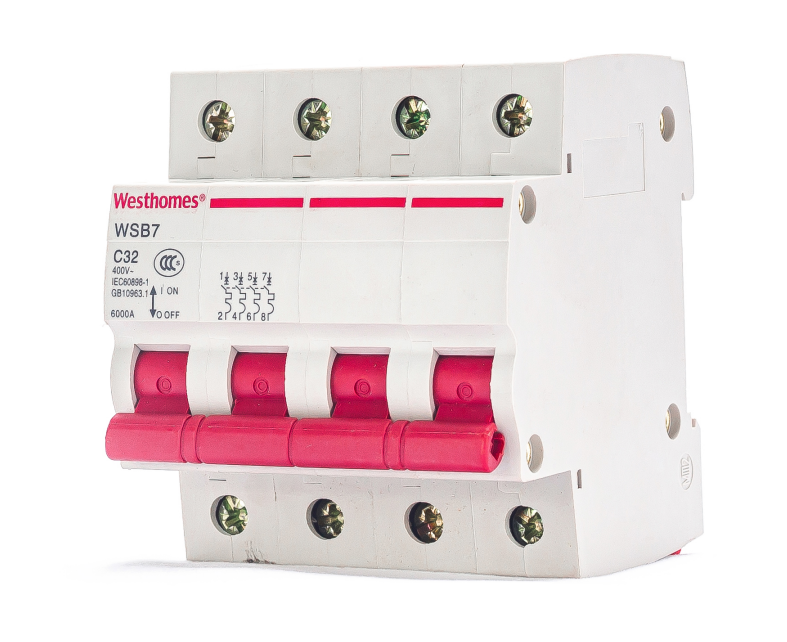

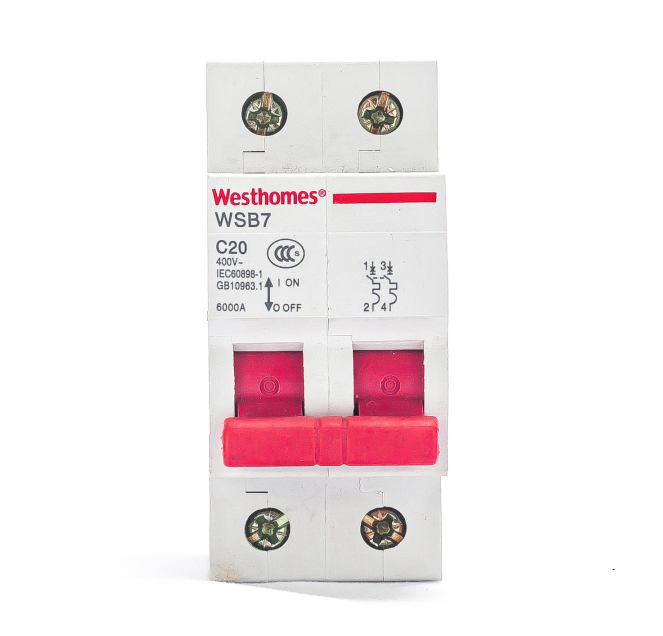

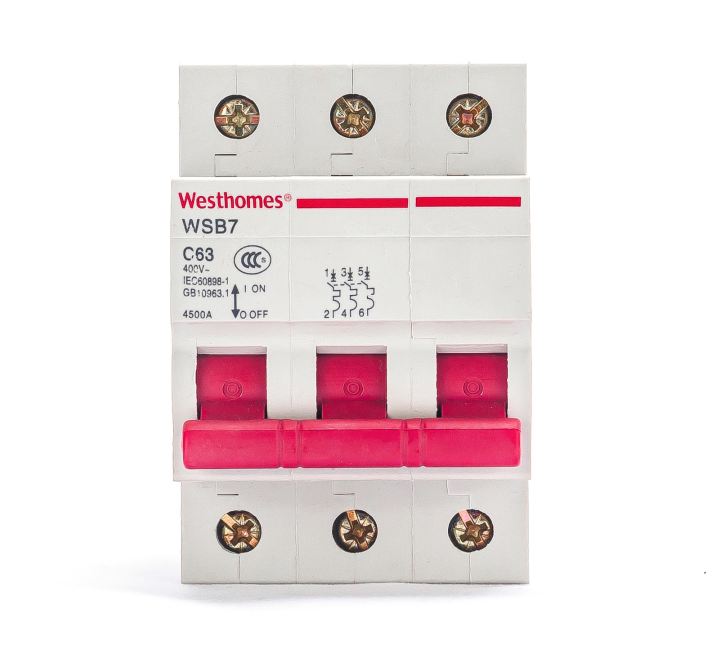

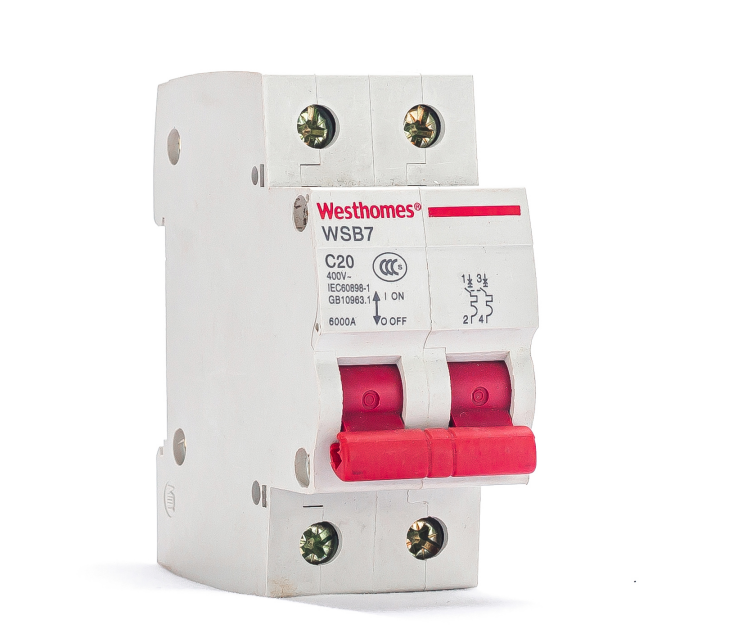

Pole: 1P, 2P, 3P, 4P
Voltage: AC230V/400V
kA: 4.5kA, 6kA
Amps: 6, 10, 16, 20, 25, 32,40, 50, 63

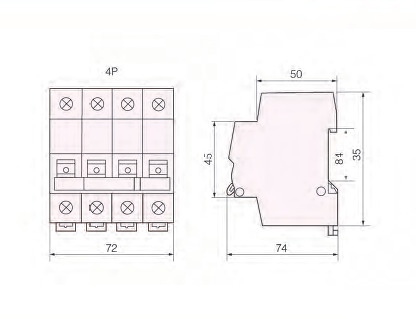

Width: 18, 36, 54, 72mm
General
WSB7-63 series high breaking miniature circuit breaker is applied in line of AC 50/60Hz, rated voltage 230/400V and rated current upto 63A for overload and short circuit protection, also for usage of infrequent operation switching of line under nomal circumstance. It is used at places of industrial, commercial, high-rise and residula buildings, meets standards IEC/EN60898-1 and GB10963.1.
Main technical parameters
| Current rating (A) | 6, 10, 16, 20, 25, 32, 40, 50, 63 | ||
| Type of instantaneous tripper | Type B (3-5)In; Type C (5-10)In; Type D (10-20)In | ||
| Pole (P) | 1P, 2P, 3P, 4P | ||
| Rated short circuit breaking capacity | Current rating (A) | 1-63A | |
| Pole (P) | 1P, 2P | 3P, 4P | |
| Rated voltage (V) | 230 / 400 | 400 | |
| Rated short circuit breaking current (A) | 6000 (6-40A); 4500 (50-63A) | ||
| Power factor COSΦ | 0.7 | ||
| Mechanical electrical life | Current rating (A) | 1-32A | 40-63A |
| Electrical life (times) | 4000 | ||
| Mechanical life (times) | 20000 | ||
| Operation frequency (times / hour) | 240 | 120 | |
